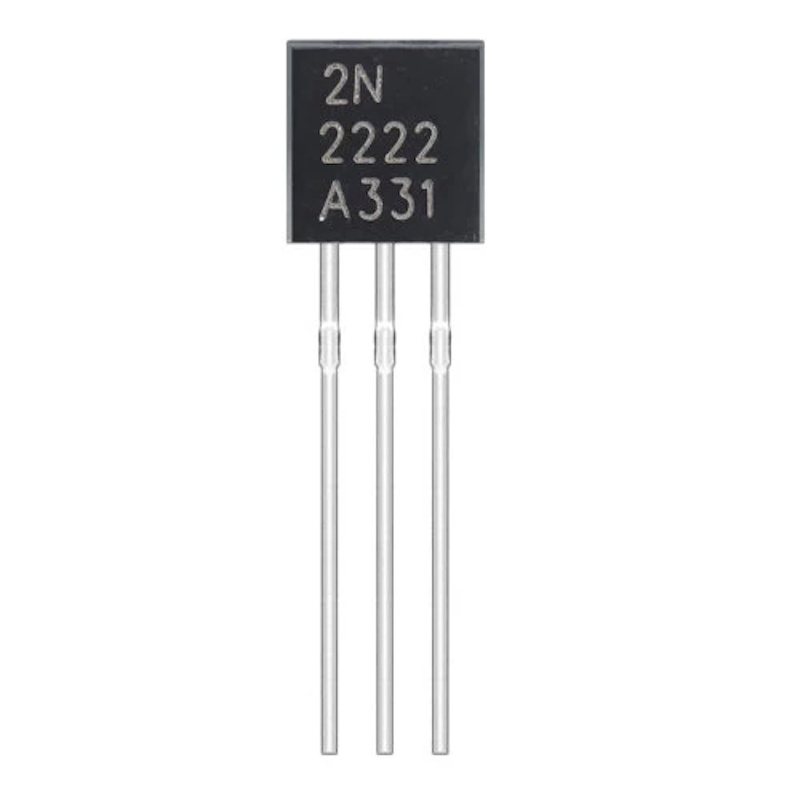

The 2N2222A NPN TO-92 Transistor is a versatile and high-performance transistor that can be used in a wide range of electronic applications. This transistor has a maximum collector current of 600mA and a maximum collector-emitter voltage of 30V, making it suitable for use in low-power amplifier and switching circuits. The TO-92 package makes it easy to integrate this transistor into your circuit designs, and the NPN configuration ensures that it can be easily controlled with a low voltage signal. With its compact size and reliable performance, the 2N2222A NPN TO-92 Transistor is an essential component for any electronics enthusiast or hobbyist.

Power Dissipation (TC = 25°C) : 1.5W

DC Current Gain (hFE) : 30-300

Operating Temperature Range : -55 ~ 150°C

Continuous Collector Current (IC) : 0.6A

Collector-Base Voltage (VCB) : 75V

Emitter-Base Voltage (VEB) : 6V

Collector-Emitter Voltage (VCE) : 40V

Input Capacitance (CI) : 25pF

Output Capacitance (CO) : 8pF
